BS EN ISO 5817: UK Adoption Guide for Welding Quality Levels

When a UK welding inspector signs off a fillet weld as “Level C”, the document driving that decision is rarely “ISO 5817” by itself — it is BS EN ISO 5817, the British Standard adoption of the European/International specification. Same numerical content, different cover, slightly different obligations under UK law. For quality managers preparing for an EN 1090 audit, a CE/UKCA mark transition, or a post-Brexit supplier qualification cycle, the distinction matters more than the single letter prefix suggests.

This guide explains what BS EN ISO 5817 is, how it relates to the parent ISO standard, and how to operationalise its three quality levels (B, C, D) in a UK manufacturing environment without drowning in paperwork.

What is BS EN ISO 5817?

BS EN ISO 5817 is the British Standards Institution’s national adoption of the European harmonised standard EN ISO 5817, which itself implements the international ISO 5817 specification on quality levels for imperfections in fusion-welded joints in steel, nickel, titanium and their alloys. The three identifiers — ISO, EN ISO, BS EN ISO — refer to the same technical content, but the legal status and the supplementary national annexes differ:

• ISO 5817: international, voluntary, published by ISO in Geneva.
• EN ISO 5817: harmonised European Norm. Once a EN, it must be adopted by every CEN member as a national standard within six months and any conflicting national standards withdrawn.
• BS EN ISO 5817: the UK adoption. Same body text, plus a BSI cover, a national foreword, and occasionally a UK-specific annex referencing related British Standards (for example BS EN 1090-2 for execution of steel structures).

Post-Brexit, the UK retained the EN ISO standard as a “designated standard” supporting the UKCA marking regime for construction products and continues to align with the European corpus on welding quality. In practice, citing “ISO 5817” in a UK Welding Procedure Specification (WPS) or quality plan is acceptable, but auditors increasingly expect the BS EN ISO prefix when the contract references British Standards.

Why UK manufacturers should care

The cost of misreading BS EN ISO 5817 is not theoretical. Three concrete scenarios:

1. EN 1090 / BS EN 1090 execution class disputes. The execution class (EXC1 to EXC4) drives the required ISO 5817 quality level (D, C, or B). An inspector challenging a weld at the wrong quality level is a contractual issue resolved by quoting the standard correctly.
2. Supplier qualification under ISO 3834-2. Manufacturers with full quality requirements per ISO 3834-2 must demonstrate that their inspection regime maps to the chosen ISO 5817 level. UK auditors will look for the BS EN reference in the QMS.
3. UKCA / CE dual marking. Until the UK Government extends recognition of CE marking, dual production for UK and EU markets means citing both BS EN ISO 5817 (UK) and EN ISO 5817 (EU) in the same documentation pack.

The three quality levels in plain language

ISO 5817 defines acceptance criteria across roughly 26 imperfection types — porosity, undercut, lack of fusion, cracks, excess weld metal, misalignment, and so on. Each imperfection has a limit value that depends on the chosen quality level:

The standard does not prescribe which level applies — that decision is made by the design engineer based on service conditions and the relevant product standard (BS EN 1090-2 for steel structures, BS EN 13445 for unfired pressure vessels, BS EN 15085 for railway applications, and so on).

Reading the limit tables

Each row in the imperfection tables gives a numerical limit as a function of plate thickness t or weld throat a. For example, continuous undercut is limited to:

• Level B: h ≤ 0.05 t, max 0.5 mm
• Level C: h ≤ 0.1 t, max 0.5 mm
• Level D: h ≤ 0.2 t, max 1 mm

A single document can apply multiple levels: a structural assembly might have welds at Level C overall but specific safety-critical seams promoted to Level B.

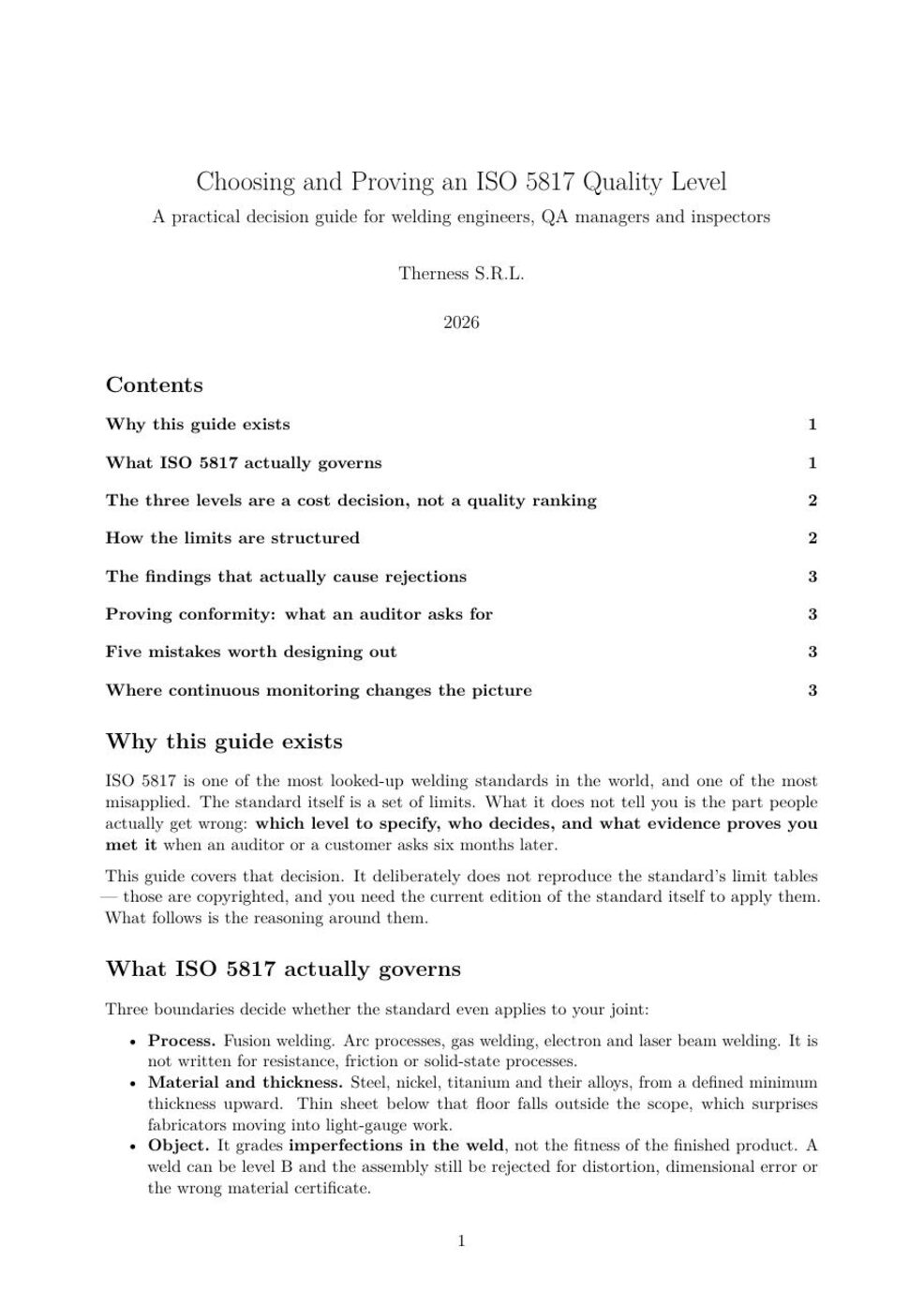

Decision framework: which BS EN ISO 5817 level for your project?

Use this checklist when a customer specification is silent on quality level (which happens more often than it should).

1. Is the component covered by a product standard that prescribes the level? Check BS EN 1090-2 Table 17 for steel structures. If yes, stop here — apply that level.
2. Is loading static or fatigue-driven? Fatigue-loaded → Level C minimum. Static-only and non-critical → Level D acceptable.
3. Is the failure mode brittle (low temperature, hydrogen-prone steels)? Push to Level B if yes.
4. What are the consequences of failure? Personal injury or major economic loss → Level B. Contained loss → C. Cosmetic/secondary → D.
5. What is the manufacturer’s process capability? A welder qualified under ISO 9606-1 for Level C work cannot reliably hit Level B without additional qualification. Specifying Level B without verifying capability creates rework.

Inspection workflow that satisfies BS EN ISO 5817

Compliance with the standard is not a paperwork exercise — it requires demonstrable inspection at frequencies and using methods appropriate to the chosen level. A workflow that holds up in a BSI audit:

1. Define the inspection scope in the Welding Procedure Specification

The WPS, written per BS EN ISO 15609-1, must reference the BS EN ISO 5817 level. Auditors check this is present before looking at the welds themselves.

2. Select inspection methods per BS EN ISO 17635

BS EN ISO 17635 defines which non-destructive testing (NDT) method is appropriate for which imperfection type. For Level B, expect:

• 100% visual testing per BS EN ISO 17637
• Penetrant or magnetic particle testing for surface cracks
• Radiographic or ultrasonic testing for internal defects on critical seams

3. Qualify inspectors per BS EN ISO 9712

NDT operators must hold valid certification under ISO 9712, Level 2 minimum for sentencing welds. Level 3 is required for procedure approval.

4. Record results against the imperfection table

For each weld, the inspection record should list: imperfection type → measured value → ISO 5817 limit → accept/reject decision. This traceability is what an auditor follows from the certificate of conformity back to the welder.

5. Real-time monitoring as a complement, not a substitute

In-process thermal monitoring and vision systems flag heat-input anomalies and porosity formation before they become reject-grade defects. They do not replace post-weld NDT for BS EN ISO 5817 sentencing — but they reduce the population of defects reaching that gate, which directly reduces rework cost.

Mapping BS EN ISO 5817 to your QMS

If your quality management system is built around ISO 3834-2, the mapping is direct: the WPS references the quality level, the welder qualification matches the level, the inspection plan enforces the level, and the records demonstrate the level was met. UK manufacturers transitioning to digital QMS platforms commonly hit one of three obstacles:

The third row is where most legacy operations bleed time during BSI audits — the inspector can prove conformity for a single weld but cannot demonstrate consistency across a production batch without manual data triangulation.

What changed in the most recent BS EN ISO 5817 revision

The 2024 revision of EN ISO 5817 (transposed into BS EN ISO 5817:2024) did not alter the three quality level definitions or the core imperfection limits. The substantive updates:

• Clarified treatment of imperfections at fillet weld toes to align with fatigue assessment per BS 7608.
• Added explicit reference to additive manufacturing exclusion (AM joints are out of scope; refer to the emerging ISO/ASTM 52900 series).
• Tightened wording on micro-cracks to remove ambiguity that had been exploited in arbitration.

If your QMS still references the 2014 edition, schedule a documentation review before the next BSI surveillance audit.

Practical next steps for UK quality managers

1. Audit your active WPS library. Replace bare “ISO 5817” citations with “BS EN ISO 5817:2024”.
2. Verify welder qualifications match the highest quality level you specify. Mismatch is the #1 finding in BSI surveillance audits.
3. Map your NDT plan to BS EN ISO 17635. Document the rationale for each method choice.
4. Digitise inspection records so quantitative data — not pass/fail flags — backs up every sentencing decision.
5. Consider in-process monitoring to reduce the defect population reaching post-weld inspection. Useful pages on this: active thermography for subsurface defects and real-time IR welding monitoring.
